· Two AC input terminals with integrated transfer switch
· Featuring grid-tied function for peak s having
· Support parallel operation for capacity expansion up to 108kW.
· Dual outputs for smart load management
Solar Inverter
Enjoy Solar 8KW 10KW 12KW 48Vdc Off Grid Single Phase Solar Energy Storage Inverter
Detailed description
Advantage
- Maximum PV input voltage up to 550VDC
- Output power factor up to 1.0
- Dual MPP trackers
- Up to 9 units in parallel for capacity extension
- Featuring Grid-Tied Function for Peak Shaving
- Compatible with lithium, lead-acid and GEL batteries
- Support WiFi and 4G remote monitoring
- PVkeeper platform for local commissioning
- Timing charging and output control
Basic Parameters
| Datasheet | SPE 8000 ES | SPE 10000 ES | SPE 12000 ES |
| Input data (DC) | |||
| Max. PV power | 10000W | 12500W | 15000W |
| Max. DC voltage | 550V | ||
| Start voltage | 120V | ||
| MPP voltage range | 60V-480V | ||
| No. of MPP trackers | 2 | ||
| No. of PV strings per MPP tracker | 1 | ||
| Max. input current per MPP tracker | 27A | ||
| Output data (AC) | |||
| AC nominal power | 8000W | 10000W | 12000W |
| Max. AC apparent power | 8000VA | 10000VA | 12000VA |
| Nominal AC voltage | 230V | ||
| AC grid frequency | 50/60Hz | ||
| Output current | 34.8A | 43.5A | 52.2A |
| Adjustable power factor | 0.8leading…0.8lagging | ||
| THDi | < 5% | ||
| Max. conversion efficiency (PV/AC) | 96.5% | ||
| European efficiency @ vnominal (PV/AC) | 95.5% | ||
| Battery data (DC) | |||
| Nominal DC voltage | 48V | ||
| Max charging and discharging current | 190A/200A | 220A/240A | 250A/280A |
| Type of battery | Lithium/Lead-acid | ||
| Backup power (AC) | |||
| AC nominal output power | 8000W | 10000W | 12000W |
| Nominal AC output voltage | 230V | ||
| Nominal AC output frequency | 50/60Hz | ||
| Switch time | <20ms@Single <30ms@Parallel | ||
| Efficiency | |||
| Peak. efficiency | 96.5% | ||
| European efficiency | 95.5% | ||
| General data | |||
| Dimensions (W / H / D) | 550/465/150mm | ||
| Weight | 21.5kg | ||
| Operating temperature range | –10°C … +50°C | ||
| Noise emission (typical) | < 75dB | ||
| Self-consumption | < 75W | ||
| Topology | Tranformerless | ||
| Cooling | DC fan | ||
| Protection degree | IP20 | ||
| Relative humidity | 5%~95% non-condensing | ||
| Altitude | < 2000m | ||
| Communication | WiFi/4G | ||

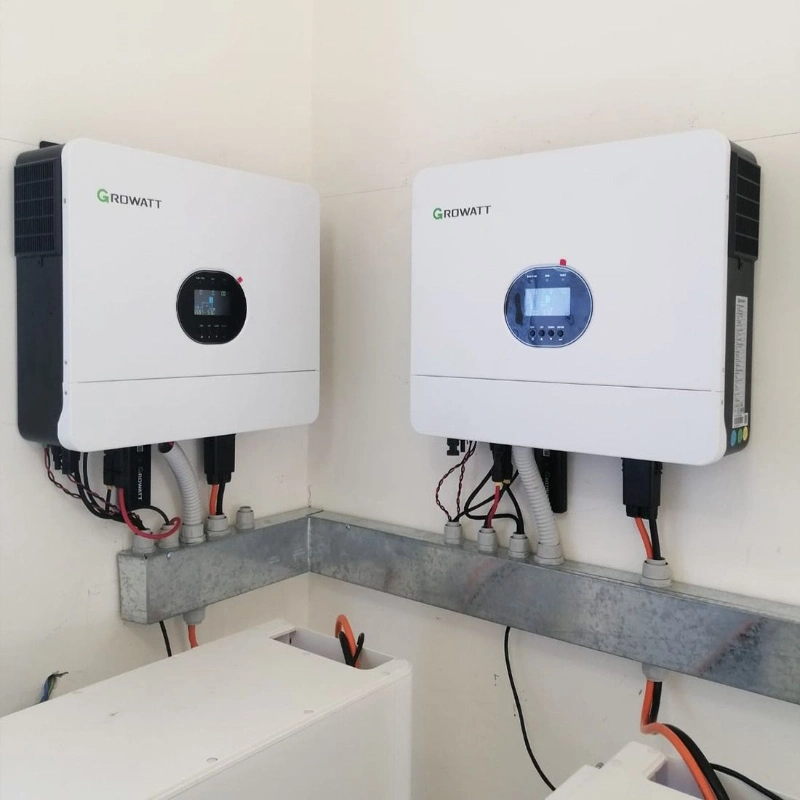

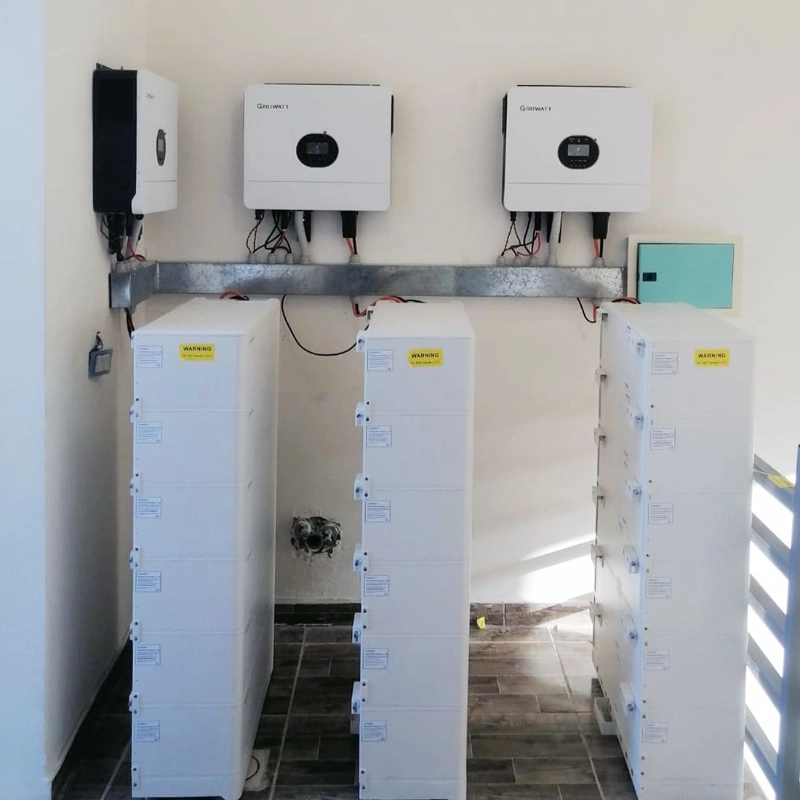

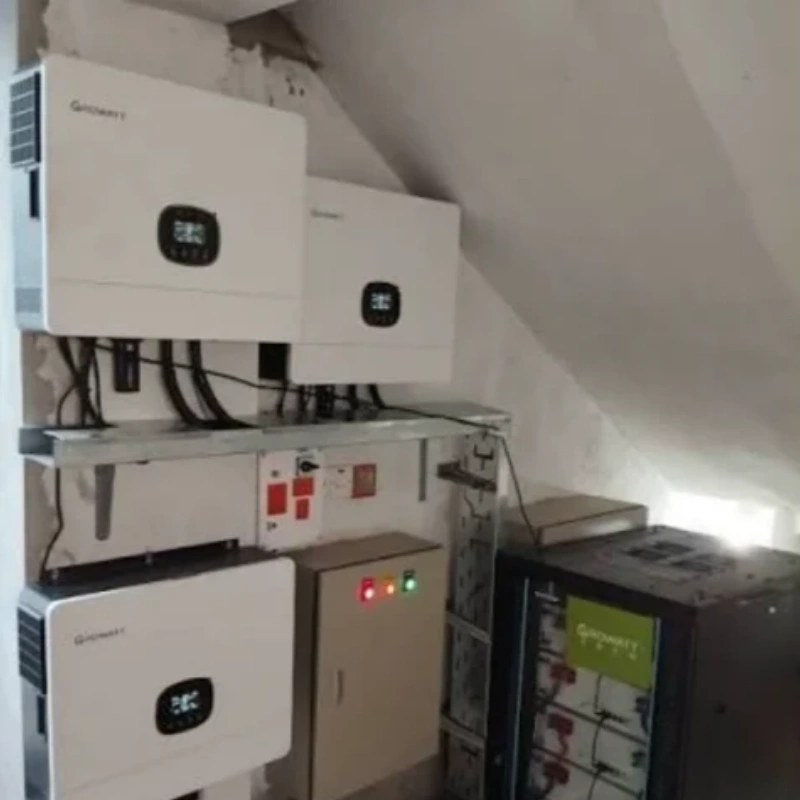

Projects
Package and Shipping
Application Scenarios：
-
Factory
-
Business Districts
-
Farm, Residential House
-
Hospital
FAQ：
-
Will the hybrid inverter continue supplying power when the grid fails?
Yes. When connected to batteries, the hybrid inverter can automatically switch to backup mode and supply power to essential household loads during a grid outage. -
Does the hybrid inverter support charging batteries from utility power?
Yes. The inverter can charge batteries from the grid, making it suitable for time-of-use electricity pricing and ensuring backup energy is available when needed. -
Can I monitor the system remotely?
Yes. Users can monitor solar generation, battery status, load consumption, and grid interaction in real time through a mobile app or web portal. -
Which battery technologies are supported?
Most hybrid inverters are compatible with lithium-ion batteries and lead-acid batteries. Communication protocols such as CAN and RS485 are supported for seamless integration with major battery brands.
