Enjoy Solar High Voltage 112kwh 241kwh LiFePO4 Battery System with 51.2V 314Ah HV Lipo Battery Modules

The 51.2V 314Ah LiFePO4 Battery Pack-based modular storage with scalable clusters. Built with advanced BMS, it delivers safe, long-life performance for C&I and utility applications. Flexible expansion, easy integration with solar/microgrids/backup, plus centralized cluster management and thermal stability—ideal for large-scale, high-reliability projects.

Battery Pack	System Energy (KWh)	112.56	160.8	192.96	225.12	241.2
	System Usable Energy (KWh)	101.30	144.72	173.66	202.61	217.08
	Configuration	7 modules +1 BCU	10 modules +1 BCU	12 modules +1 BCU	14 modules +1 BCU	15 modules +1 BCU
	Rated voltage	358.4V	512V	614.4V	716.8V	768V
	Weight	900kg	1300kg	1550kg	1780kg	1900kg
	Dimension (W*D'H,mm)	5408702100	10808701620	10808701860	10808702100

Inquire Now

Detailed description

Advantage

Single 16kWh capacity, 6,000+ cycles – Long-lasting, reliable energy
Smart cloud monitoring – Real-time insights, lower costs
Up to 15 modules in series – Scalable for future needs
113kg per module – Easy install with manual
Advanced BMS protection – Safe from over-charge/discharge, short circuits
High IP rating, wide temp range – Durable in harsh conditions
10-year warranty, full replacement – Covers 6,000 cycles

Parameters

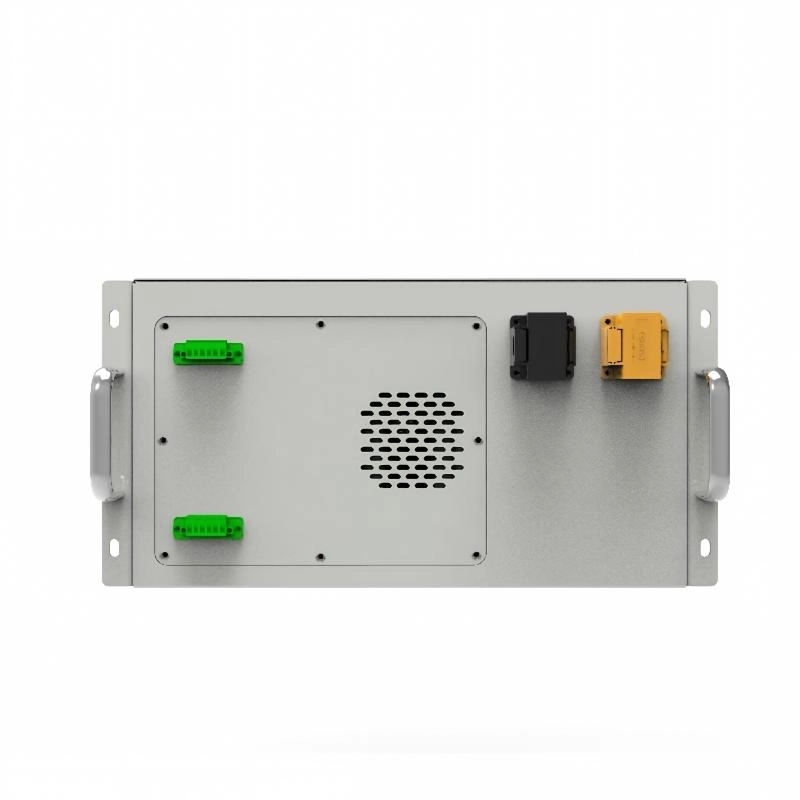

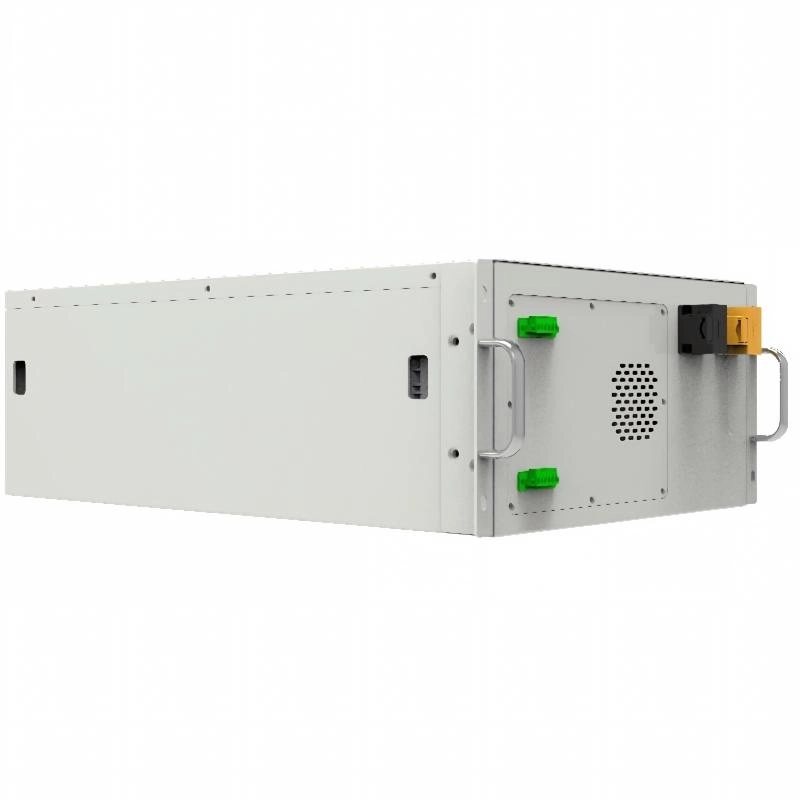

Battery module		ES-16H
Battery Module	Rated energy	16.08KWh
	Rated voltage	51.2V
	Rated capacity	314Ah
	Dimension(W/D/H)	532775234(±5)mm
	Weight	113±3KG
Battery Pack	Configuration	7 modules +1 BCU	10 modules +1 BCU	12 modules +1 BCU	14 modules +1 BCU	15 modules +1 BCU
	Rated voltage	358.4V	512V	614.4V	716.8V	768V
	Voltage range	313.6 ~397.6	448.0 ~568.0	537.6 ~681.6	627.2 ~795.2	672 ~852.0
	System Energy (KWh)	112.56	160.8	192.96	225.12	241.2
	System Usable Energy (KWh)	101.30	144.72	173.66	202.61	217.08
	Weight	900kg	1300kg	1550kg	1780kg	1900kg
	Dimension (W*D’H,mm)	540870 2100	1080870 1620	1080870 1860	1080870 2100
	Charge/Discharge Current	Recommend 157 Max 180
	Working Temperature	Charge:0~55/Discharge:-20~55
	Humidity	5%~85%RH
	Altitude(m)	≤3000
	Protection degree	IP20

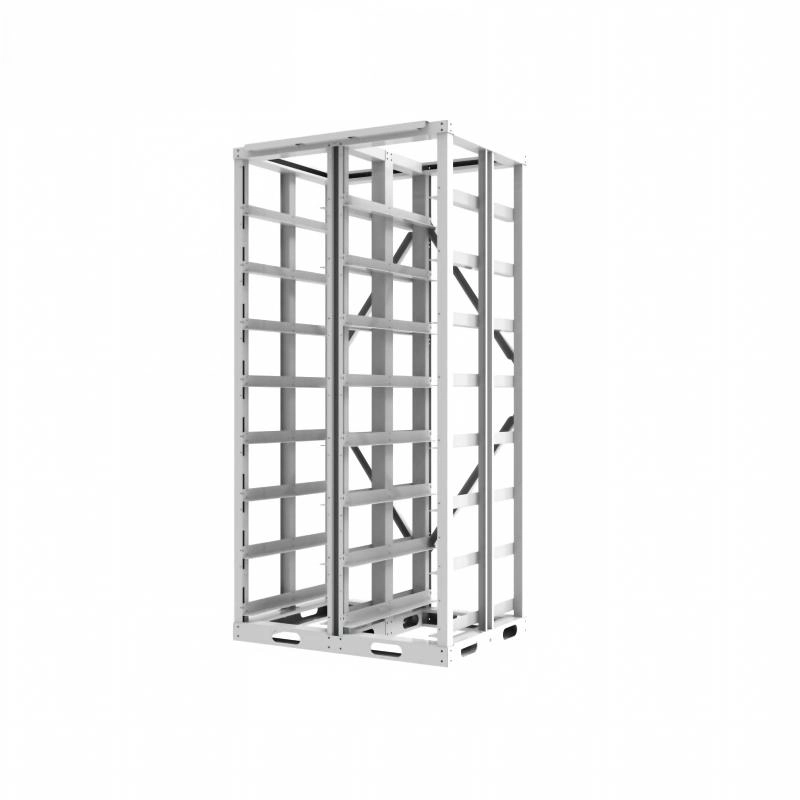

	Installation Location	Rack-Mounted
	Storage Terperature(℃)	0~35
	Recommend Depth of Discharge	90%
	Cycle Life	≥6000(25±2C/0.5C/EOL70%)
	Certification	CE UN38.3，MSDS
