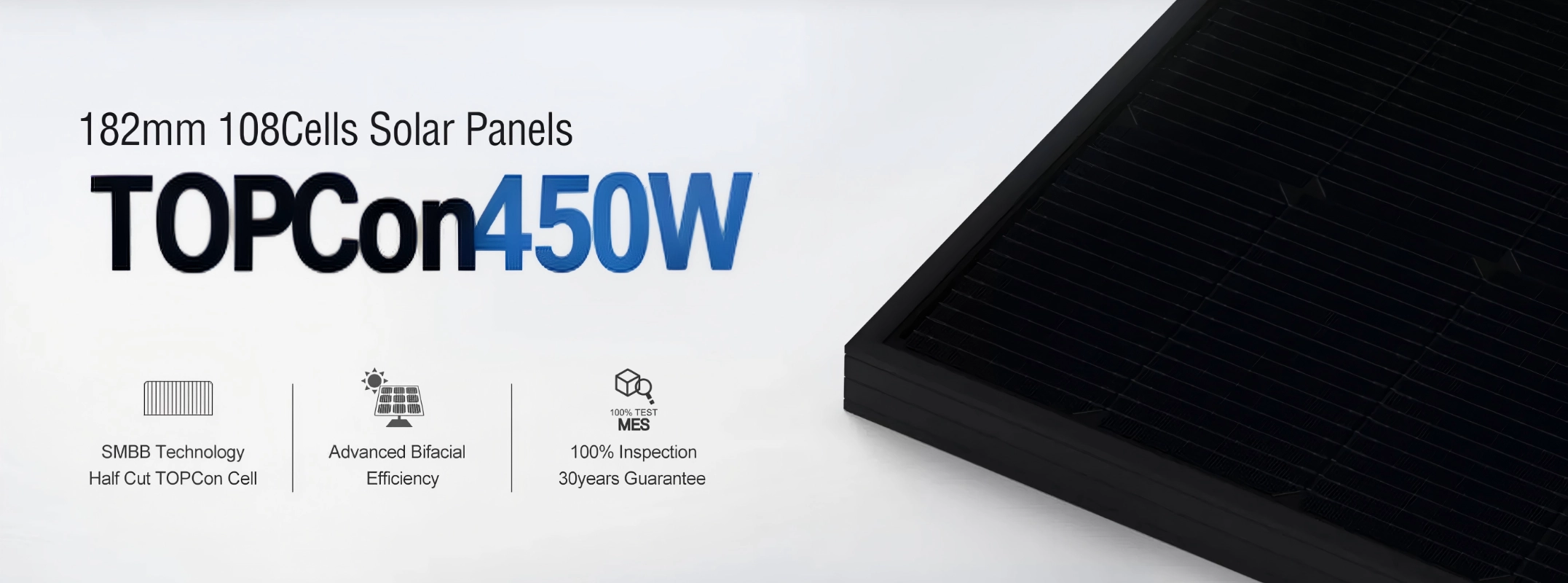

Enjoy Solar N Type Topcon Solar Cells Full Black Solar Panel 450W 460W For Solar System

All-black full aesthetic design with black frame, black backsheet and black busbars, ideal for residential rooftop projects with high visual requirements.
Adopts N-type monocrystalline MBB half-cut 182mm cells, total 108 cells (2×54 split layout).
Fire Class A rating, built-in anti-PID performance to avoid long-term power attenuation.

Inquire Now

Electrical Characteristics (STC)
Module Type	ES440-54M-H8NS		ES450-54M-H8NS		ES460-54M-H8NS
Test Cpnditions	STC	NMOT	STC	NMOT	STC	NMOT
Maximum Power – Pmax(W)	440	324	450	331	460	339
Open Circuit Voltage – Voc(V)	38.26	36.63	38.56	36.93	38.86	37.23
Short Circuit Current – Isc(A)	15.03	11.36	15.21	11.45	15.39	11.58
Voltage at Pmax – Vmp(V)	31.7	29.65	31.99	29.93	32.29	30.24
Current at Pmax – Imp(A)	13.89	10.93	14.07	11.06	14.25	11.21
Module Efficiency – nm(%)	22.53	/	23.04	/	23.42	/
Power Tolerance(W)	(0, +5W)
Maximum System Voltage(V)	1500Vdc(IEC, UL)
Maximum Series Fuse Rating(A)	25A
*STC: Irradiance 1000W/m², Cell Temperature 25℃， Air Mass 1.5
Measurement tolerance: ±3% Power binning up to: +3%

Product Advantages

Application Scenarios：

FAQ：

What are the efficiency advantages of a 460W TOPCon N-Type bifacial solar panel?

460W TOPCon N-Type bifacial solar panels use advanced N-type TOPCon cell technology, which offers higher conversion efficiency, lower degradation rates, and improved low-light performance compared to conventional PERC modules.
How does a bifacial solar panel generate more energy?

Bifacial solar panels can absorb sunlight from both the front and rear sides. When installed on reflective surfaces like ground-mounted systems or white rooftops, they can generate additional energy from the rear side light capture.
Are 460W solar panels suitable for utility-scale solar farms?

Yes. 460W solar panels are ideal for commercial rooftops and large utility-scale solar farms since they require fewer modules for the same power output, reducing balance-of-system (BOS) costs and installation time.
What is the expected lifespan of a TOPCon N-Type solar panel?

High-quality TOPCon N-Type solar panels typically have a lifespan of 25–30 years with a low annual degradation rate, ensuring stable performance and long-term energy production throughout the system life.
Can this 460W solar panel be used in high-temperature environments?

Yes. This 460W solar panel is designed with an excellent temperature coefficient and robust materials, making it suitable for operation in high-temperature and harsh environmental conditions.
